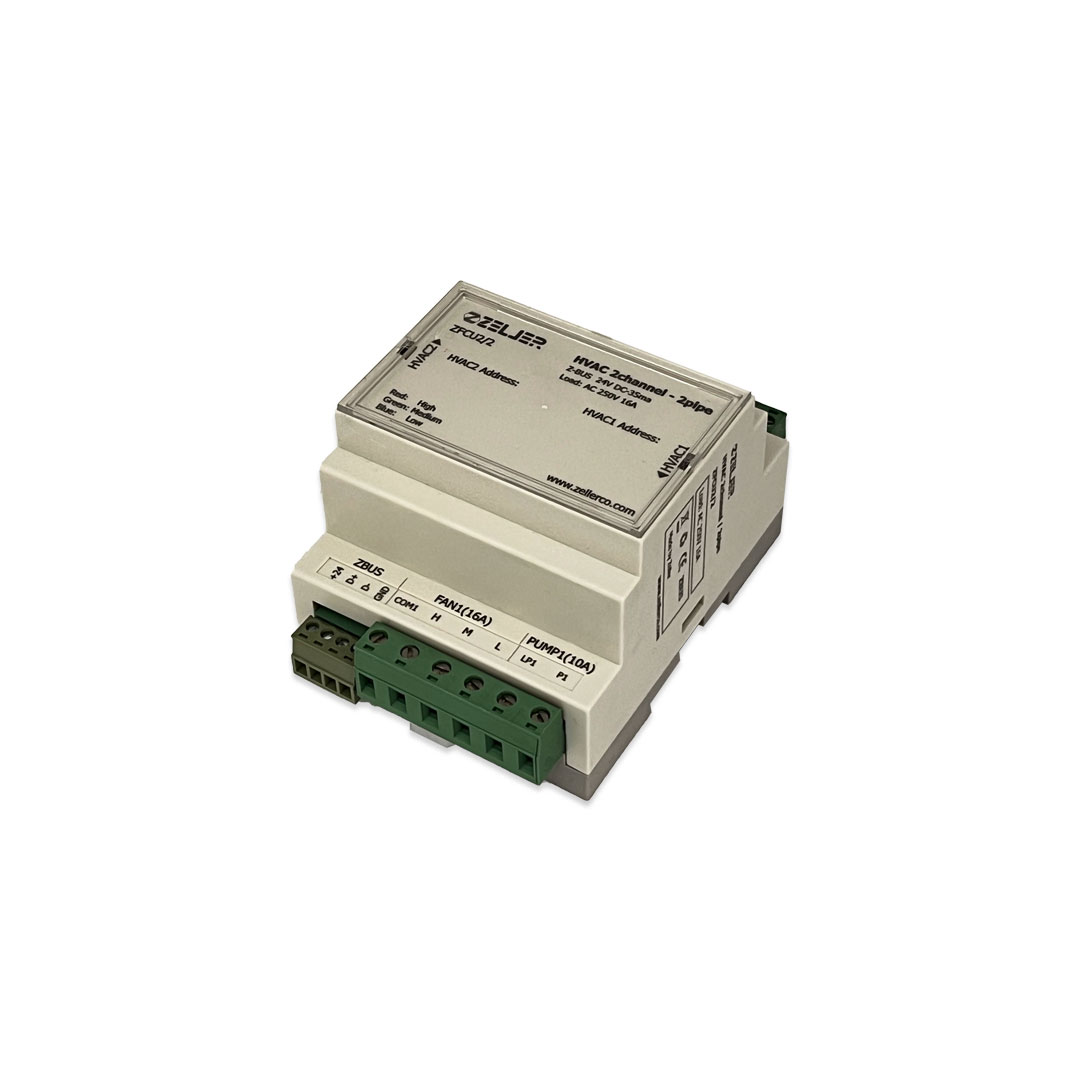

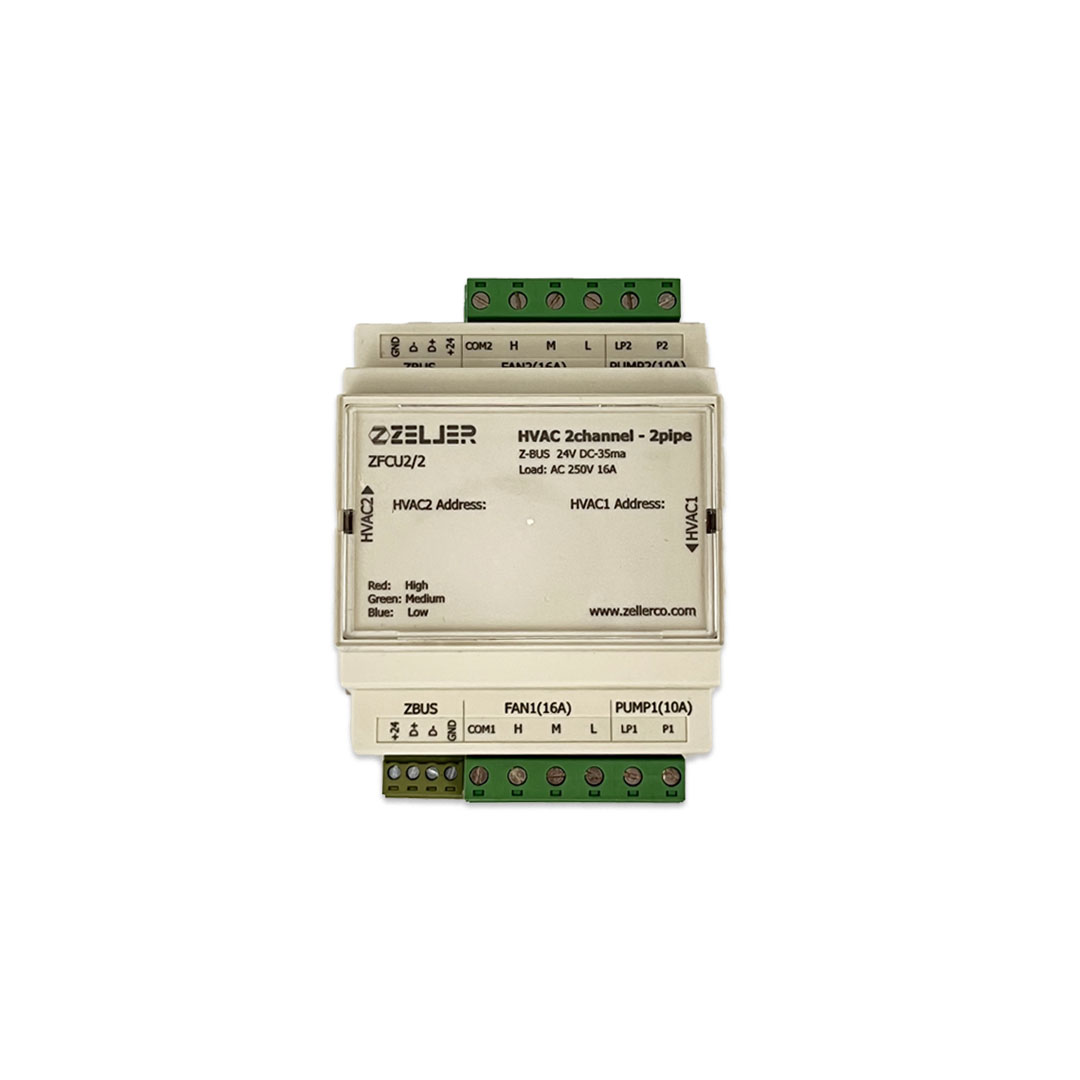

ZFCU2CH2P

BRAND NAME: ZELLER
Body Material: ABS
CERTIFICATION: RoHS
FIRE RESISTANCE LEVEL: UL94V-0
APPLICABLE TEMPERATURE: -25°-60°C
Up to two blocks to control 2-pipe fan coil units
LED status indicator
Total data saving on S-bus failure
Size 72*87*60mm (45 DIN units)
DIN rail mounting (EN 50022), with fixing clamp
Integrated sbus BCU
Possibility of connecting different phases in adjacent outputs
Manual Pairing Programming to DDP Panel
Advanced Software Configuration & Programming
2 x Separated Switched Relay outputs rated at 10A each pump
6 x Separated Switched latch Relay outputs rated at 16A each ch(fan)
35mm DIN-Rail Mount Ready
Wall Mount Ready (4P)
